Eaton industrial hose

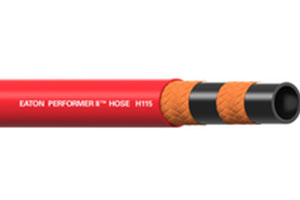

H11512-550R
Air and water transfer hose, with high oil resistance
Features
- 225-300 psi operating pressure
- ‘-40 F to 180 F
- Tube: Nitrile (RMA Class A)
- Reinforcement: 4-fiber braid
- Cover: Vinyl nitrile
- 4:1 safety factor
EH360 – WATER SUCTION & DISCHARGE
Standard Water suction and discharge hose
Features
- 150 psi operating pressure
- ‘-40 F to 158 F temperature rating
- Cover: Synthetic rubber
- High-tensile synthetic textile reinforcement and steel helical wire
- Tube: Synthetic rubber
- 3:1 safety factor

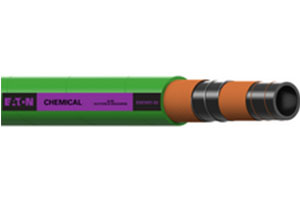

EHC001
Suction and discharge of acids, chemicals, solvents, and petroleum products
Features
- 150 psi operating pressure
- ‘-40 F to 176 F
- Tube: XLPE blend
- High tensile synthetic textile reinforcement, steel helical and anti-static wire
- Cover: EPDM
- 4:1 safety factor

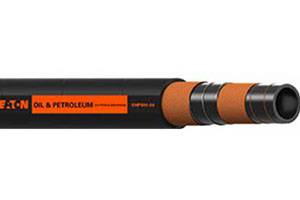

EHP500
Oil and petroleum suction and discharge hose
Features
- 150 psi operating pressure
- ‘-31F to 158F temperature rating
- NBR tube and cover
- High tensile synthetic textile reinforcement, steel helical and anti-static wire
- 3:1 Safety Factor
- 50% aromatic content resistant

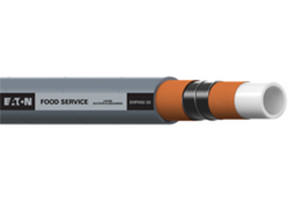

EHP002
Liquid food suction & discharge hose. Compatible with milk,
vegetable oil and beverages
Features
- 150 psi operating pressure
- -40F to 176F
- Tube:NBR
- Cover: SBR, Oil, abrasion, ozone and weather resistant
- Textile reinforcement with single helical wire
- Tube: NBR, FDA compliant vegetable oil-resistant material
- 3:1 safety factor

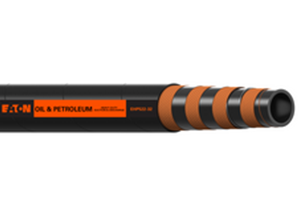

EHP522
High pressure oil and petroleum suction and discharge hose
Features
- 300 psi operating pressure
- ‘-31F to 158F temperature rating
- Tube:NBR
- High-tensile synthetic textile reinforcement with helical wire
- Cover: NBR ( ARPM / RMA Class A)
- 3:1 Safety Factor
- Up to 50% aromatic content resistant
